MC Note Deposit Safe

Combinable with OptiCoin- and MSS-Series

The banknote module is an additional device for the OptiCoin- or rather for the MSS-series which makes the parallel deposit of coins and banknotes possible. It can be used in combination with all OptiCoin and MSS devices equipped with a touch TFT. Two different banknote-acceptors for single note- and alternatively with bundle-note-feeder for smaller banknote bundles are available. The combination of coin- and note-deposit builds the perfect solution for sectors like public transport, vending, parcel-services and other retailers.

Variants
+ Front-Load
+ Special colours (RAL-colours)

Safety
+ Safe CEN II based

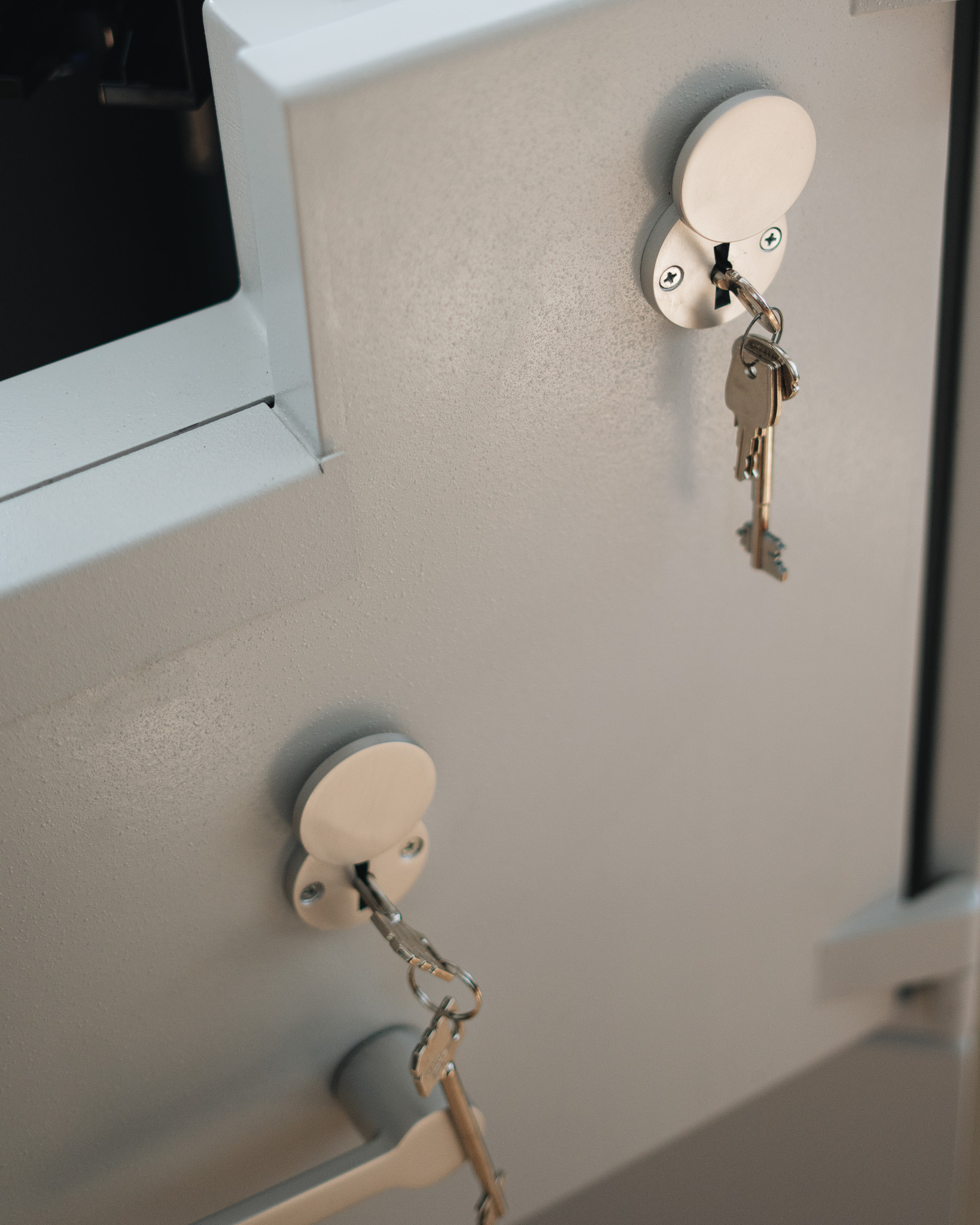

+ Solid 3-point locking system
+ Safe-locks according to EN 1300 Class B

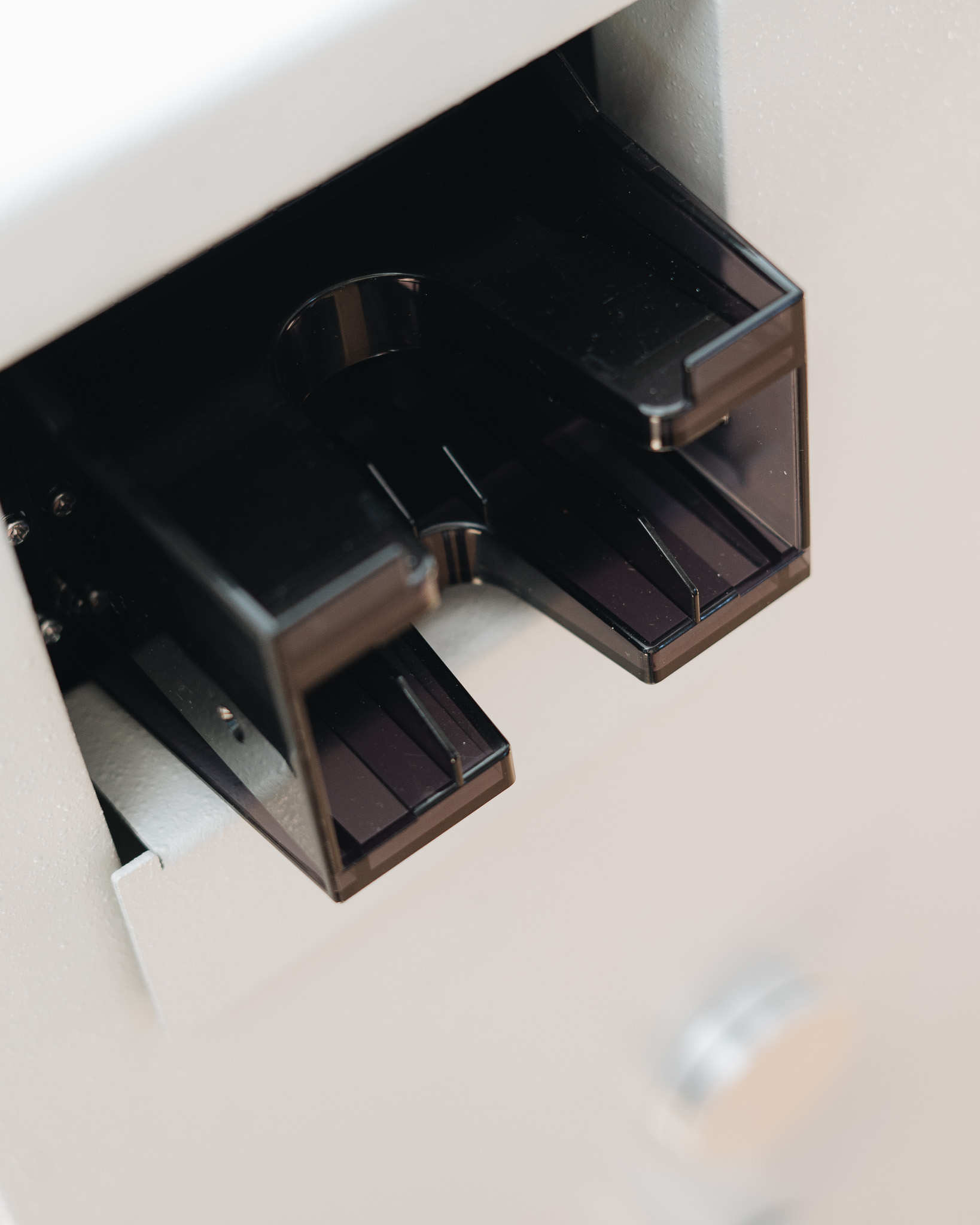

Banknote acceptor

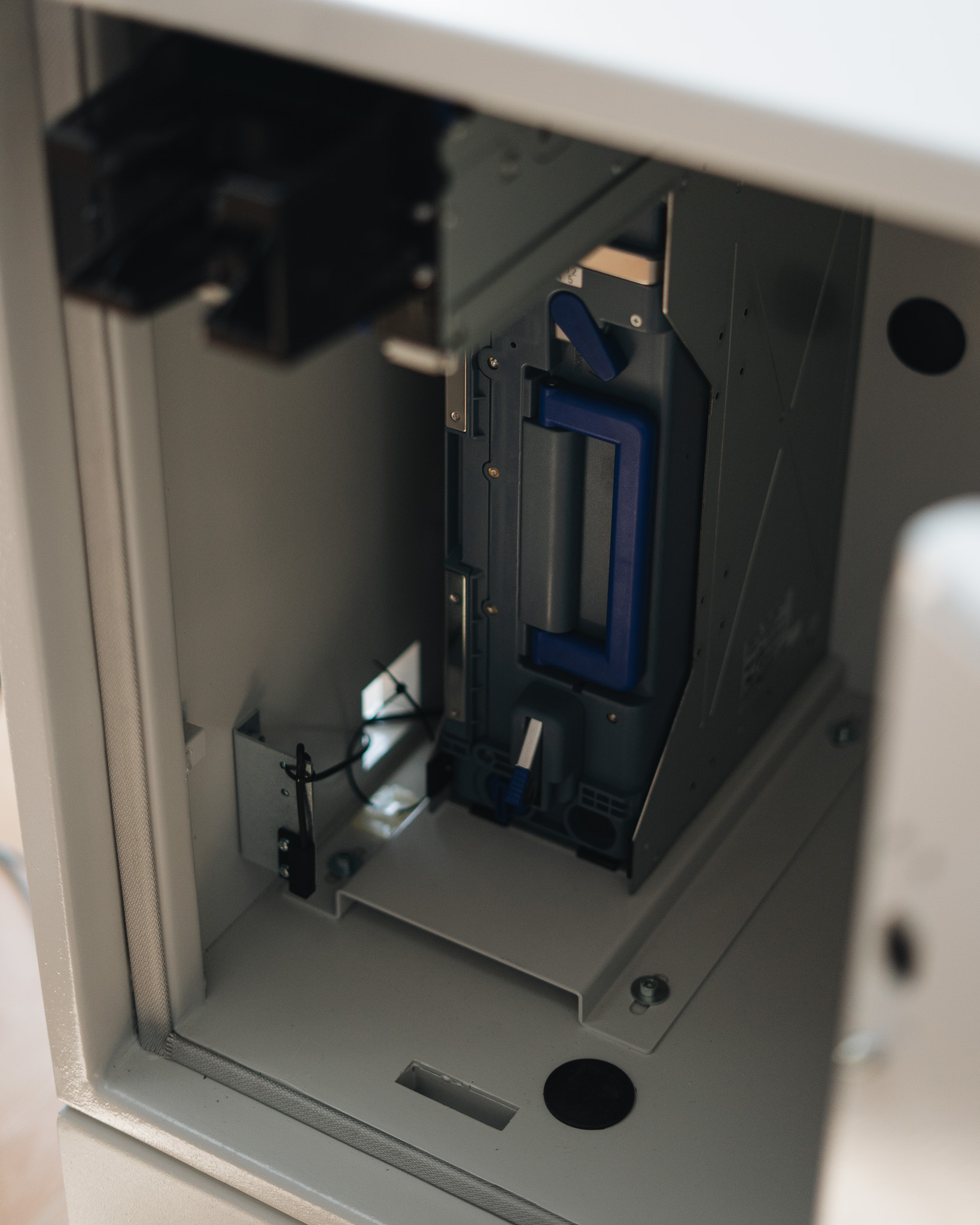

+ JCM TBV™ with Stacking cassette
+ Processing speed: 1,7 sec/note
+ Acceptance rate: 98% or higher
+ Bulk note up to 50 notes
+ Capacity cash box up to 2.000 notes

Software
+ Integrated in the application of attached coin deposit system
+ Parallel deposit of notes and coins

Spezifications
Dimensions: 450 x 462 x 1.008 mm
Weight: 195 kg
Standard Colour: RAL 7035
